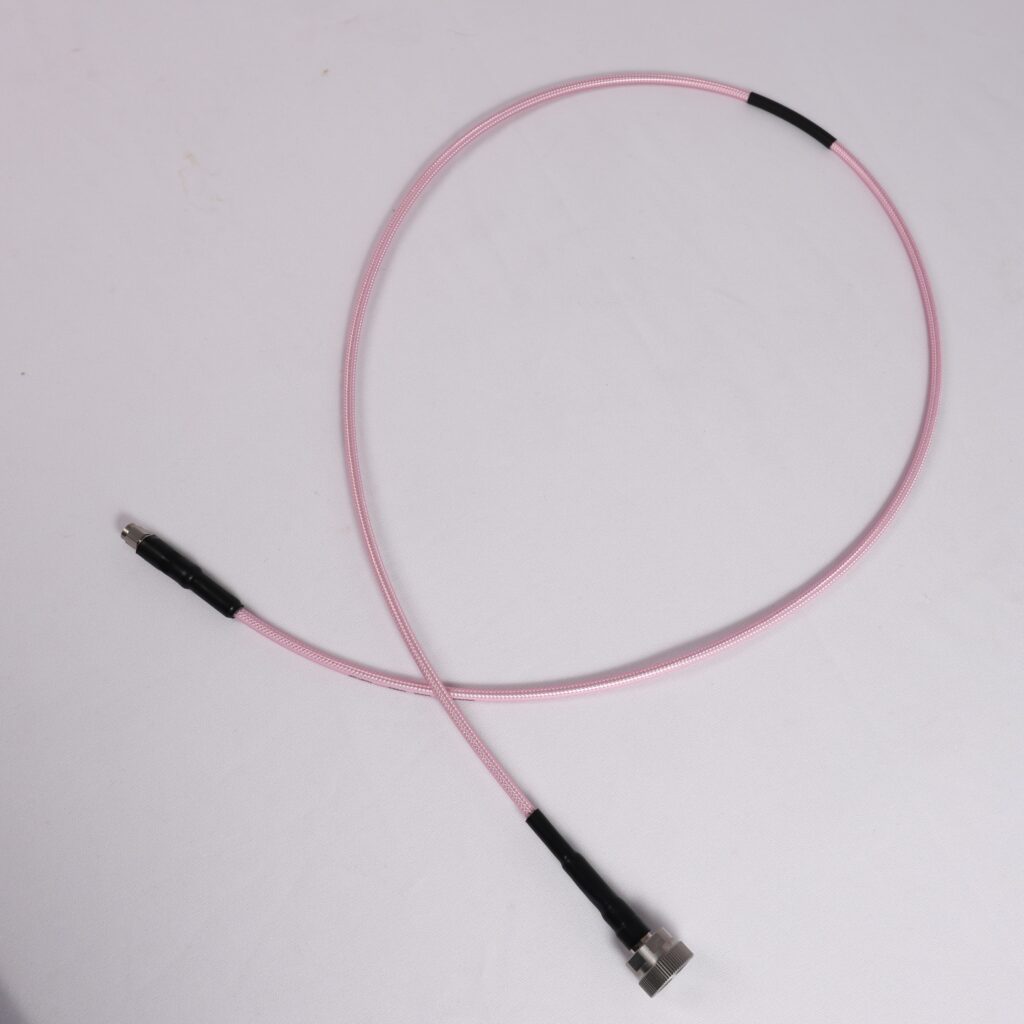

RF Cable Assemblies Table
| PART NUMBER | DESCRIPTION | CONNECTOR A | CONNECTOR B | CONNECTOR CONFIGURATION | GENDER | FREQUENCY | VSWR | IMPEDANCE | LENGTH | ENQUIRE |
|---|---|---|---|---|---|---|---|---|---|---|
| BNC MALE TO SMA MALE FOR RG316E CABLE ASSEMBLY | BNC | SMA | STRAIGHT-STRAIGHT | MALE TO MALE | 0 ~ 4 GHz | < 1.30 | 50Ω | 1.2 Meter | ||
| SMA FEMALE TO SMA FEMALE FOR RG316E CABLE ASSEMBLY | SMA | SMA | STRAIGHT-STRAIGHT | FEMALE TO FEMALE | 0 ~ 6 GHz. | < 1.30 | 50Ω | 1.2 Meter | ||
| N TYPE MALE TO N TYPE MALE FOR 0X50H CABLE ASSEMBLY | N TYPE | N TYPE | STRAIGHT-STRAIGHT | MALE TO MALE | 0 - 18 GHz | ≤1.3to18GHz @ 0~18 GHz | 50Ω | 5 Meter | ||
| N TYPE MALE TO SMA MALE FOR 0X50H CABLE ASSEMBLY | N TYPE | SMA MALE | STRAIGHT-STRAIGHT | MALE TO MALE | 0 - 18 GHz | ≤1.3to18GHz @ 0~18 GHz | 50Ω | 3 Meter | ||
| 2.92mm Male To 2.92mm Male FOR 7T350G CABLE ASSEMBLY | 2.92mm | 2.92mm | STRAIGHT-STRAIGHT | MALE TO MALE | 0~40 GHz | ≤1.35 to 40 GHz @ 0~40 GHz | 50Ω | XXXX | ||
| RIGHT ANGLE N TYPE MALE TO RA SMA MALE FOR LMR195 CABLE ASSEMBLY | N TYPE | SMA MALE | RIGHT TO RIGHT | MALE TO MALE | 0~0.512 GHZ | ≤1.30 @ 0~0.512 GHz | 50Ω | 3 Meter | ||
| SMA MALE TO SMA MALE FOR LMR240 CABLE ASSEMBLY | SMA | SMA | STRAIGHT-STRAIGHT | MALE TO MALE | 0~2.5 GHZ | ≤1.3 @ 0~2.5 GHz | 50Ω | 1 Meter | ||
| MCE-0A50H-SMAM-SMAF-1000-01 | SMA MALE TO SMA FEMALE FOR 0A50H CABLE ASSEMBLY | SMA | SMA | STRAIGHT-STRAIGHT | MALE TO FEMALE | 0~26.5GHz | ≤1.25 @ 0~26.5 GHz | 50Ω | 1 Meter | |
| SMA MALE TO SMA MALE FOR 0A50H CABLE ASSEMBLY | SMA | SMA | STRAIGHT-STRAIGHT | MALE TO MALE | 0~26.5GHz | ≤1.25 @ 0~26.5 GHz | 50Ω | XXXX | ||
| L29 MALE TO L29 MALE FOR 0A80H CABLE ASSEMBLY | L29 | L29 | STRAIGHT-STRAIGHT | MALE TO MALE | 0~6GHZ | ≤1.25 @ 0~6GHZ | 50Ω | 1 Meter | ||
| N TYPE MALE TO N TYPE MALE FOR 0C80H CABLE ASSEMBLY | N TYPE | N TYPE | STRAIGHT-STRAIGHT | MALE TO MALE | 0~18GHZ | ≤1.35 @ 0~18GHz | 50Ω | XXXX | ||
| MCE-0C80H-NTM-SMAM-3000-01 | N TYPE MALE TO SMA MALE FOR 0C80H CABLE ASSEMBLY | N TYPE | SMA MALE | STRAIGHT-STRAIGHT | MALE TO MALE | 0~18GHZ | ≤1.35 @ 0~18GHz | 50Ω | 3 Meter | |
| MCE-8N-RA-BNCM-RA-BNCM-3000-01 | RIGHT ANGLE BNC MALE TO RIGHT ANGLE BNC MALE FOR 8N CABLE ASSEMBLY | BNC | BNC | RIGHT TO RIGHT | MALE TO MALE | 0~3GHz | ≤1.25 @ 0~3GHz | 50Ω | 3 Meter | |
| MCE-LMR195-NTM-RA-NTM-5000-01 | NTM MALE TO RIGHT ANGLE N TYPE MALE FOR LMR195 CABLE ASSEMBLY | N TYPE | N TYPE | STRAIGHT TO RIGHT | MALE TO MALE | DC~0.512 GHz | ≤1.30 @ 0~0.512 GHz | 50Ω | 5 Meter | |
| BNC MALE TO RIGHT ANGLE BNC MALE FOR LMR195 CABLE ASSEMBLY | BNC | BNC | STRAIGHT TO RIGHT | MALE TO MALE | 0~3 GHz | ≤1.25 @ 0~3 GHz | 50Ω | XXXX | ||
| N TYPE MALE TO N TYPE MALE FOR LMR195 CABLE ASSEMBLY | N TYPE | N TYPE | STRAIGHT-STRAIGHT | MALE TO MALE | 0~3GHZ | ≤1.25 @ 0~3GHz | 50Ω | XXXX | ||
| MCE-LMR195-NTM-SMAM-1500-01 | N TYPE MALE TO SMA MALE FOR LMR195 CABLE ASSEMBLY | N TYPE | SMA | STRAIGHT-STRAIGHT | MALE TO MALE | 0~3GHz | ≤1.25 @ 0~3 GHz | 50Ω | 1.5 Meter | |
| RIGHT ANGLE N TYPE MALE TO BNC MALE FOR LMR195 CABLE ASSEMBLY | N TYPE | BNC | RIGHT TO STRAIGHT | MALE TO MALE | 0~0.512GHZ | ≤1.30 @ 0~0.512GHz | 50Ω | XXXX | ||
| N TYPE MALE TO N TYPE MALE FOR RG214 CABLE ASSEMBLY | N TYPE | N TYPE | STRAIGHT-STRAIGHT | MALE TO MALE | 0~3 GHz | ≤1.58 dB @ 0~3 GHz | 50Ω | 3 Meter | ||
| N TYPE MALE TO BNC MALE FOR RG223 CABLE ASSEMBLY | N TYPE | BNC | STRAIGHT-STRAIGHT | MALE TO MALE | 0~3GHZ | ≤1.3 @ 0~3GHz | 50Ω | 3 Meter | ||
| 3.5mm MALE TO 3.5mm MALE FOR X500H CABLE ASSEMBLY | 3.5mm | 3.5mm | STRAIGHT-STRAIGHT | MALE TO MALE | 0~26.5GHZ | ≤1.3 to26.5 @ 0~26.5GHZ | 50Ω | XXXX | ||
| SMA MALE TO SMA MALE FOR T141 CABLE ASSEMBLY | SMA | SMA | STRAIGHT-STRAIGHT | MALE TO MALE | 0~18 GHz. | < 1.30 | 50Ω | XXXX | ||
| SMA MALE TO SMA MALE FT480 CABLE ASSEMBLY | SMA | SMA | STRAIGHT-STRAIGHT | MALE TO MALE | 0~18 GHz. | < 1.30 | 50Ω | XXXX | ||
| N TYPE MALE TO N TYPE MALE R14A CABLE ASSEMBLY | N TYPE | N TYPE | STRAIGHT-STRAIGHT | MALE TO MALE | 0~6 GHz. | < 1.30 | 50Ω | 0.35 Meter | ||
| SMA MALE TO SMA MALE FOR R14A CABLE ASSEMBLY | SMA | SMA | STRAIGHT-STRAIGHT | MALE TO MALE | 0~6 GHz. | < 1.30 | 50Ω | 0.35 Meter | ||
| MCE-R142A-RA-SMAM-NTM-300-01 | RIGHT ANGLE SMA MALE TO N TYPE MALE FOR R142A CABLE ASSEMBLY | SMA | N TYPE | RIGHT-STRAIGHT | MALE TO MALE | 0~6 GHz. | < 1.35 | 50Ω | 0.30 Meter | |
| MCE-R142A-RA-SMAM-RA-SMAM-300-01 | RIGHT ANGLE SMA MALE TO RIGHT ANGLE SMA MALE FOR R142A CABLE ASSEMBLY | SMA | SMA | RIGHT-RIGHT | MALE TO MALE | 0~6 GHz. | < 1.35 | 50Ω | 0.30 Meter | |
| MCE-R142A-SMAM-NTM-200-01 | SMA MALE TO N TYPE MALE FOR R142A CABLE ASSEMBLY | SMA | N TYPE | STRAIGHT-STRAIGHT | MALE TO MALE | 0~6 GHz. | < 1.25 | 50Ω | 0.20 Meter | |
| SMA FEMALE TO MHF I MALE FOR RT178A CABLE | SMA | MHF I | STRAIGHT-STRAIGHT | FEMALE TO MALE | 0~6 GHz | < 1.50 | 50Ω | 0.159 Meter | ||
| SMA FEMALE TO SWJ MALE FOR 137M CABLE ASSEMBLY | SMA | SWJ | STRAIGHT-STRAIGHT | FEMALE TO MALE | 0~8 GHz. | < 1.10 @ 0~3 GHz, < 1.15 @ 3~6 GHz, < 1.20 @ 6~8 G | 50Ω | 0.303 Meter | ||
| SMA MALE TO RIGHT ANGLE ML51 MALE CABLE ASSEMBLY | SMA | ML51 | STRAIGHT-RIGHT | MALE TO MALE | 0~8 GHz | < 1.25 @ 0~8 GHz | 50Ω | 0.360 Meter | ||
| BNC MALE TO SMB MALE FOR RG316 CABLE ASSEMBLY | BNC | SMB | STRAIGHT-STRAIGHT | MALE TO MALE | 0~4 GHz | < 1.30 | 50Ω | 0.150 Meter |
Inside the Cable
Precision Engineered for Signal Integrity
Every layer is purpose-built to reduce interference, enhance durability, and deliver consistent performance.

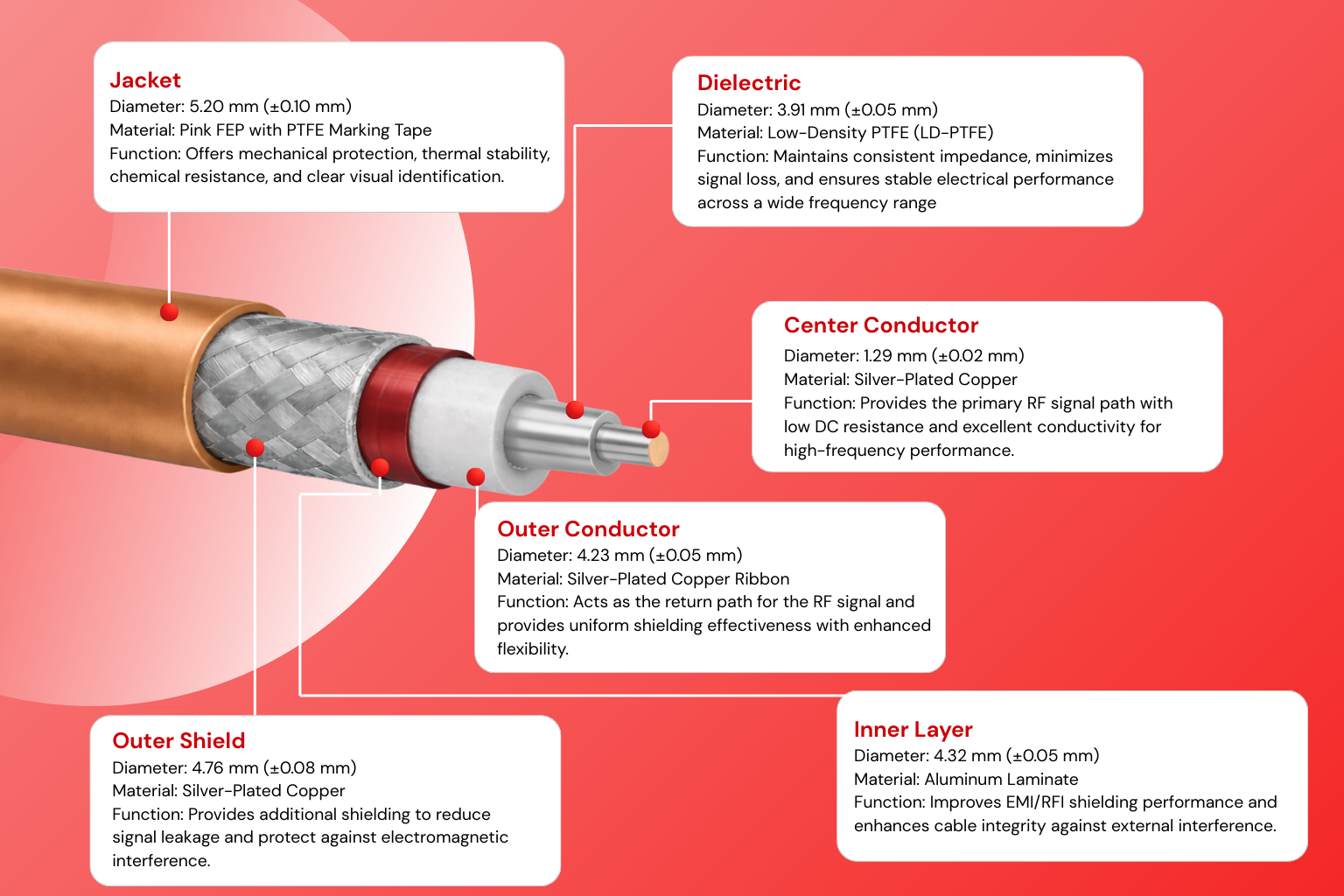

Center Conductor
Silver-Plated Copper
Dielectric
Low-Density PTFE
Outer Conductor
Silver Plated Copper Ribbon
Inner Layer
Aluminum Laminate
Outer Shield
Silver Plated Copper
Jacket
High-Durability Polymer
MCE-HF520
Microwave Assembly
Our interconnects are the backbone of advanced wireless systems, trusted in laboratories and operational theatres where signal fidelity is paramount.
Technical Build
Precision for the Field
Our interconnects are the backbone of advanced wireless systems, trusted in laboratories and operational theatres where signal fidelity is paramount.
5G & Telecom
Ideal for Base Station testing and massive MIMO infrastructure.
Aerospace & Defense
Engineered to withstand MIL-STD environmental stress.
Automotive Radar
Reliable connectivity for ADAS and EV battery management.
VNA Calibration
Zero-uncertainty links for laboratory-grade testing.
B2B Workflow Efficiency
Expedite Your Project Procurement
For high-volume corporate POs or complex Bill of Materials (BOM) requests, skip manual configuration. Upload your requirements and our application engineers will respond with a technical proposal within 24 hours.
- Bulk BOM Processing
- Dedicated Engineering Support
- Priority Stock Allocation
- Dedicated Engineering Support
Precision Guaranteed
Connect with our Chennai-based technical sales team for specialized component procurement.
VNA Verified. Traceable Data.
Every MCE assembly undergoes 100% Vector Network Analyzer (VNA) verification. We validate VSWR and Insertion Loss against your exact custom specifications before dispatch.
Standard
NABL & ISO Compliant
Protocol
100% Sweep Verification
Documentation
Serial Link Traceability
Max Frequency
26.5 GHz
High Precision Range
Impedance
50 Ω
Standard RF Reference
Velocity of Propagation
76%
Low Latency Signal Path
Shielding Effectiveness
100 dB
Tri-Shield™ Architecture
Voltage Withstand
1500 V (DC)
Dielectric Strength
- Data derived from Marconie Series 520 Standard Testing. Results may vary ±3% based on connector termination.
Tri-Shield™ Anatomy
Center Conductor
Silver-Plated Copper
Dielectric
Low-Density PTFE
Outer Conductor
Silver Plated Copper Ribbon
Inner Layer
Aluminum Laminate
Outer Shield
Silver Plated Copper
Jacket
High-Durability Polymer
6-Layer Integrity
Optimized shielding layer sequence providing > 100dB isolation—essential for high-density 5G and satellite testing.
VNA Verified. Traceable Data.
Every MCE assembly undergoes 100% Vector Network Analyzer (VNA) verification. We validate VSWR and Insertion Loss against your exact custom specifications before dispatch.
Standard
NABL & ISO Compliant
Protocol
100% Sweep Verification
Documentation
Serial Link Traceability
Knowledge Base
Engineering Support FAQ
Phase Drift Parameters
The MCE-HF520 is optimized for laboratory stability. We guarantee phase drift of < 2° at 26.5 GHz under standard flexing operations.
Custom Termination Options
We manufacture SMA, N-Type, and 2.92mm interfaces in male, female, and bulkhead variants to match your specific Device Under Test (DUT).
Passive Intermodulation (PIM)
Our materials are selected to ensure minimal PIM interference, typically sustaining levels below -160 dBc for telecom applications.
Corporate Lead Times
Standard configured items dispatch within 72 hours. Custom manufacturing runs (100+ units) typically ship within 10-14 business days.
