Passive Signal Distribution
PRECISION RF POWER DIVIDERS & SPLITTERS
An RF power divider is a passive, reciprocal multiport network designed to equally or unequally distribute incident power from one port to multiple ports while maintaining impedance matching, low reflection coefficients, and controlled amplitude and phase characteristics across the operational bandwidth.
Engineering Assurance
SYMMETRIC DISTRIBUTION.
SUPERIOR ISOLATION
In high-frequency systems, splitting a signal requires more than just a junction—it requires impedance matching and isolation between output ports to prevent cross-interference. Marconie splitters utilize precision-machined housings and high-grade internal circuitry to ensure minimal insertion loss and industry-leading phase balance (±3 ° typical). Every assembly is validated via 100% VNA sweep to guarantee repeatable performance in the field.
Port Configurations
2-way up to 24-way
Frequency Range
5 MHz to 18GHz
Isolation Efficiency
>= 20 dB
RF Power Dividers & Splitters – 5 MHz to 18 GHz
Includes Series, Impedance, Ports, and Isolation features in the exact same metadata layout.
| Part No | Ways | Connector | Frequency | VSWR (In) | VSWR (Out) | Insertion Loss | Isolation | Amplitude Balance | Phase Balance |
|---|---|---|---|---|---|---|---|---|---|
| MCE-PS-02-500-NTF-NTF-01 | 2-Way | N-Type (F) | 5–500 MHz | 1.15 | 1.12 | ≤ 1.0 dB | 20 dB (min) |
± 0.4 dBAmplitude
|
± 3°Phase
|
| MCE-PS-03-500-SMAF-SMAF-01 | 3-Way | SMA (F) | 5–500 MHz | 1.50 | 1.50 | ≤ 1.2 dB | 18 dB (min) |
± 0.4 dBAmplitude
|
± 3°Phase
|
| MCE-PS-04-08-SMAF-SMAF-01 | 4-Way | SMA (F) | 400–8000 MHz | 1.35 | 1.25 | ≤ 1.0 dB | 20 dB (min) |
± 0.5 dBAmplitude
|
± 5°Phase
|
| MCE-PS-08-08-SMAF-SMAF-01 | 8-Way | SMA (F) | 400–8000 MHz | 1.35 | 1.30 | ≤ 1.6 dB | 18 dB (min) |
± 0.6 dBAmplitude
|
± 6°Phase
|
| MCE-PS-XX-G-XXXX-01 | 1–24 Way | SMA / N / BNC | Up to 18 GHz | ≤ 1.45 | ≤ 1.45 | Variable | ≥ 18 dB |
± 0.5 dBCustom
|
± 5°Custom
|
SPLITTER
CONFIGURATION
Specify your multiport distribution requirements by selecting from our source-validated high-isolation architectures. Configure your port count, frequency range, and connector interfaces to generate a precision technical reference for your RF link.
Splitter Technical Build
Precision for the Field
Our interconnects are the backbone of advanced wireless systems, trusted in laboratories and operational theatres where signal fidelity is paramount.
5G & Massive MIMO
Reliable power distribution for antenna arrays and base station beamforming testing.
Aerospace & SATCOM
Multi-channel signal routing in satellite ground stations and telemetry links.
Laboratory R&D
Splitting reference signals for simultaneous DUT characterization without port-to-port leakage.
EMC/EMI Testing
Uniform signal distribution for radiated immunity and susceptibility benchmarking.
High-Isolation Link
2-WAY PRECISION SPLITTER
A compact, broadband solution optimized for high isolation and low VSWR. Ideal for 50-ohm systems requiring a transparent signal split.
- Insertion Loss: <= 1.0 dB
- Isolation: 20 dB (Minimum)
- Amplitude Balance: ± 0.4 dB
- Connectors: N-Type or SMA
High-Density Distribution

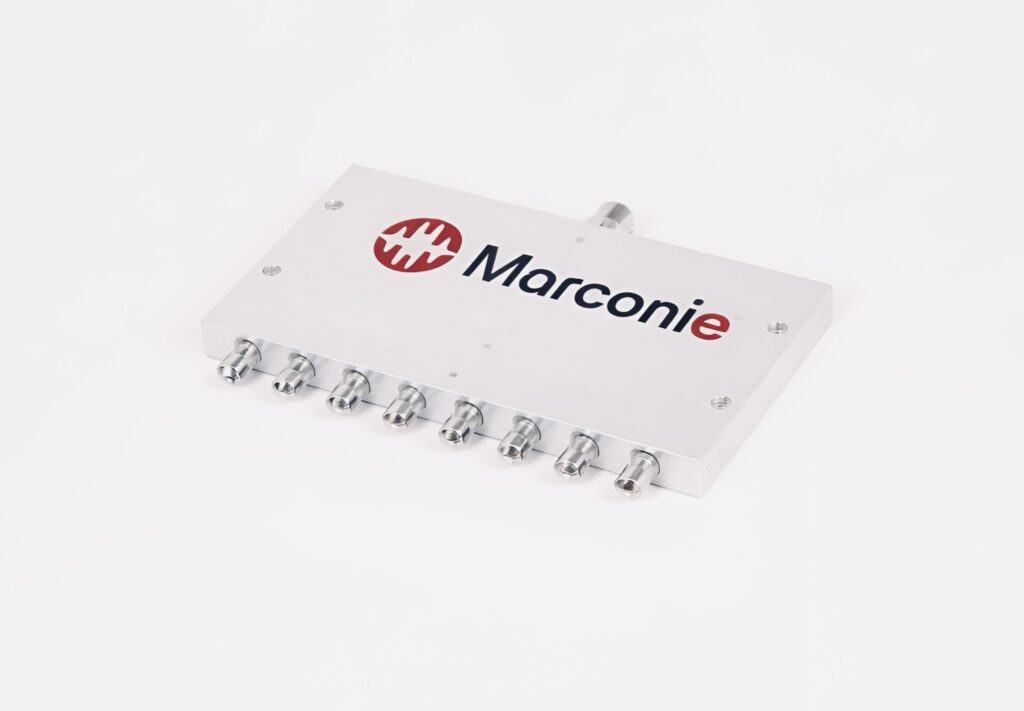

4-WAY & 8-WAY POWER DIVIDERS
Engineered for high-density signal distribution across wide bandwidths (400 MHz – 8 GHz). Features ruggedized aluminum housing for superior heat dissipation.
- Phase Balance: ±5
- Port Count: Scalable up to 24 ways on request
- VSWR (In/Out): 1.35:1 / 1.25:1
- Frequency Range: Up to 8 GHz Broadband
VNA Verified. Traceable Data.
Every MCE assembly undergoes 100% Vector Network Analyzer (VNA) verification. We validate VSWR and Insertion Loss against your exact custom specifications before dispatch.
Standard
NABL & ISO Compliant
Protocol
100% Sweep Verification
Documentation
Serial Link Traceability
Knowledge Base
Engineering Support FAQ
Amplitude & Phase Balance
The MCE-PS series is optimized for symmetry. We guarantee amplitude balance within ± 0.4 dB and phase balance within ± 3 degrees for standard 2-way models to ensure signal uniformity.
Isolation Performance
Our dividers feature high port-to-port isolation (typically greater than or equal to 20 dB), preventing a mismatch or signal reflected from one port from impacting the performance of the other output ports.
Connector Configurations
Standard units feature Female-to-Female interfaces. However, we can manufacture Male-to-Female or bulkhead variants to integrate directly into your custom rack-mount or test-fixture systems.
Corporate Lead Times
Common 2-way and 4-way configurations typically dispatch within 72 hours. High-density custom runs (12-way to 24-way) ship within 14 to 21 business days.
